M:R700
More space. More possibilities.

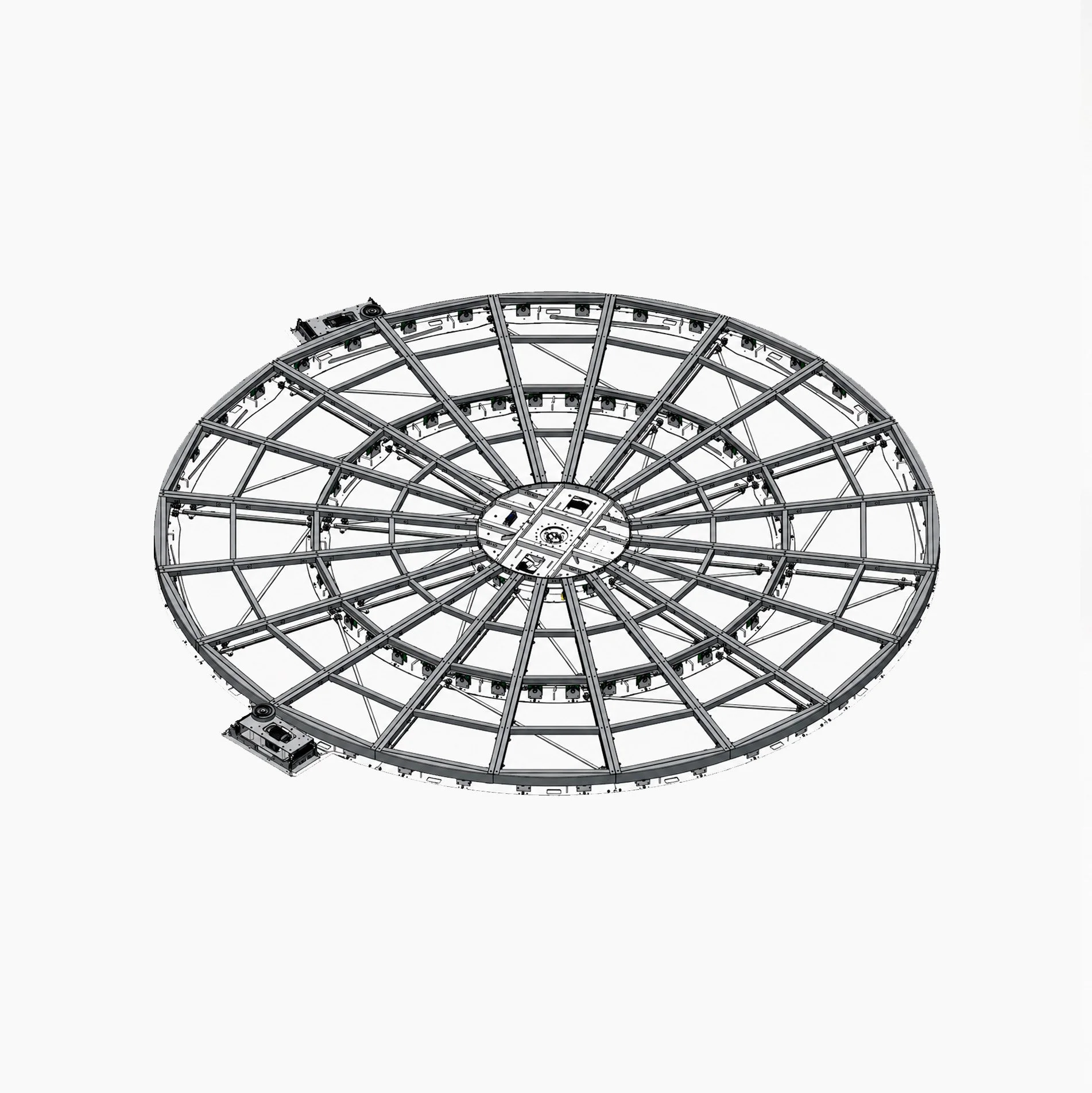

The M:R700 is a large-scale revolving stage designed for smooth, precise and reliable rotational movement in theatre, live entertainment and touring productions.
Featuring a 6950 mm diameter, a total load capacity of up to 4000 kg and a low-profile construction of just 200 mm, it provides a versatile solution for rotating performers, scenic elements and larger stage installations.
Built for touring, the M:R700 combines modular construction with quiet operation, flexible flooring options and integrated power and data connections, making it ideal for complex scenic transformations and demanding live productions.
Key Features
4000 kg Total Load Capacity – Designed to support larger scenic constructions and stage installations within the specified loading limits.
Large Revolving Platform – 6950 mm diameter provides generous space for performers and scenic elements.
Low-Profile Design – Construction height of just 200 mm, excluding flooring.
Smooth & Quiet Rotation – Designed for controlled rotational movement with minimal operating noise.
Touring-Ready Construction – Modular sections for efficient assembly, disassembly and transport, with integrated power and data connections.
Dimensions & Weight
Disc Diameter: 6950 mm
Height: 200 mm (excluding flooring)
Total Load Capacity: 4000 kg
Distributed Load Capacity: 100 kg/m²
Touring Carts: 2
-
With a diameter of 6,950 mm and a build height of only 200 mm without flooring, the M:R700 offers a large rotating surface while remaining easy to integrate into stage and scenic constructions.
-
Designed for large-scale applications, the revolve supports 100 kg/m² with a total disc capacity of up to 4,000 kg.
-
The M:R700 is powered by 2 × 0.9 kW drive units and reaches speeds of up to 3.42 rpm / 0.73 m/s, delivering smooth and controlled rotation for both subtle transitions and dynamic cues.
-
Up to 63A three-phase power and fibre optic data can be provided in the centre of the revolve, allowing equipment and scenic elements on the rotating platform to remain connected throughout movement.
-

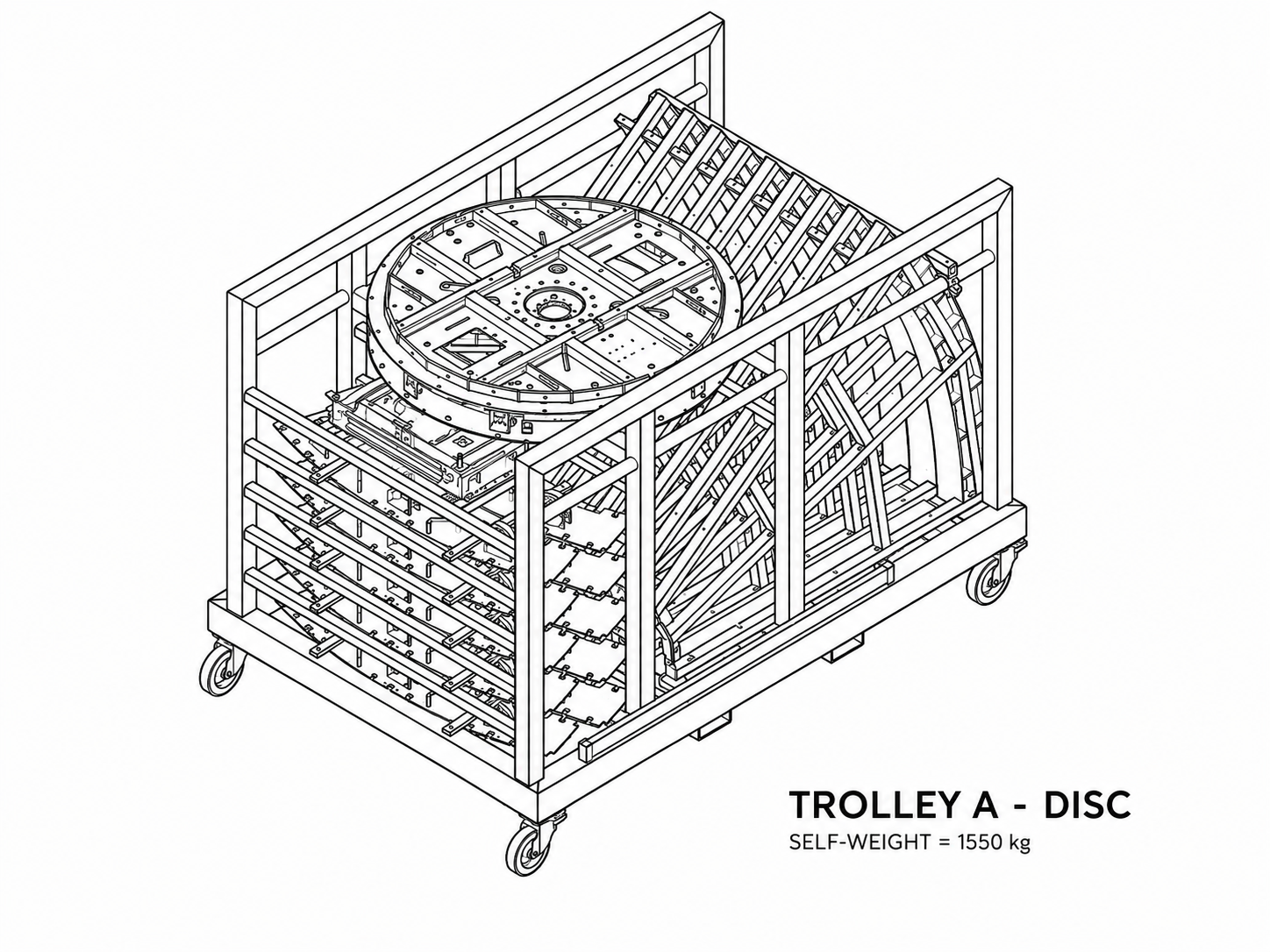

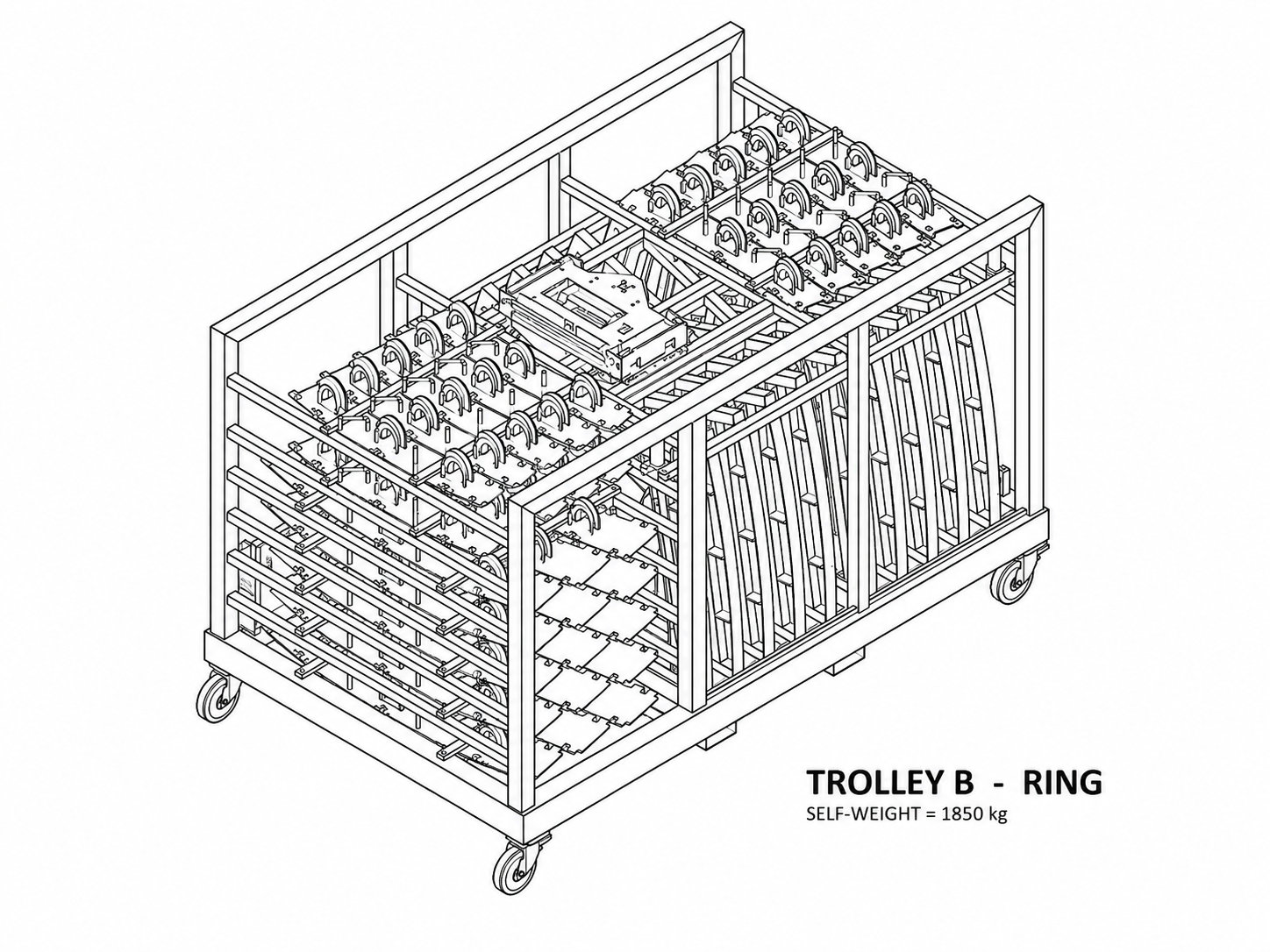

The modular construction is developed specifically for touring and packs onto two touring carts, making transport, handling and assembly between venues more efficient.
-
The M:R700 can be operated using Kinesys Elevation 1+ or MOVEKET V-Motion, allowing precise and repeatable positioning as part of a larger automation setup. The system requires 32A three-phase power.
BUILT TO MOVE. BUILT TO TOUR.
