M:R1100

Large-scale rotation. Built to tour.

The M:R1100 is a large-format revolving stage designed for productions that demand size, capacity and precise movement without compromising on touring efficiency.

With a diameter of almost 11 metres and a total load capacity of up to 9,500 kg, it provides a substantial rotating platform for performers, scenic elements, vehicles and large-scale stage constructions. Despite its size, the low 200 mm build height makes it easy to integrate into stage and scenic designs.

Built in modular sections, the M:R1100 is made for touring life, allowing efficient assembly, transport and repeated setup from venue to venue. Quiet and precise operation makes it particularly suited for theatre, musicals, arena productions, exhibitions and automotive shows.

Power and fibre data can be provided directly through the centre of the stage, while the revolve can be integrated with both Kinesys and MOVEKET control systems.

Get a Quote

  • With a diameter of 10,997 mm and a build height of just 200 mm without flooring, the M:R1100 delivers an exceptionally large rotating surface while maintaining a low-profile construction.

  • Designed for demanding large-scale applications, the revolve supports 100 kg/m² with a total disc load capacity of up to 9,500 kg.

  • The M:R1100 is powered by 3 × 0.75 kW drive units and reaches up to 1.27 rpm / 0.73 m/s, providing smooth and controlled movement across the full platform.

  • Up to 63A three-phase power and fibre optic data can be provided through the centre of the stage, allowing equipment and scenic elements on the revolve to remain powered and connected during rotation.

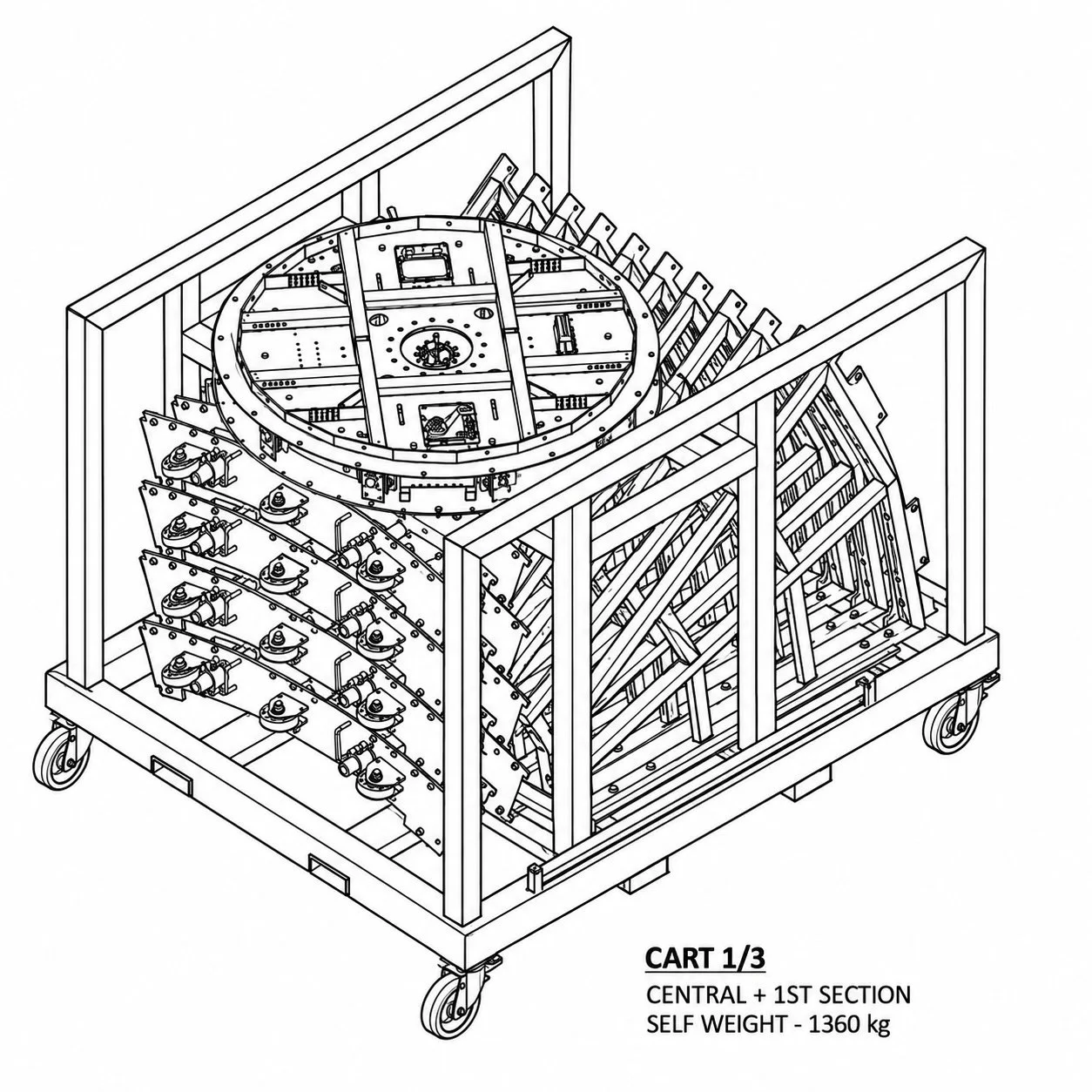

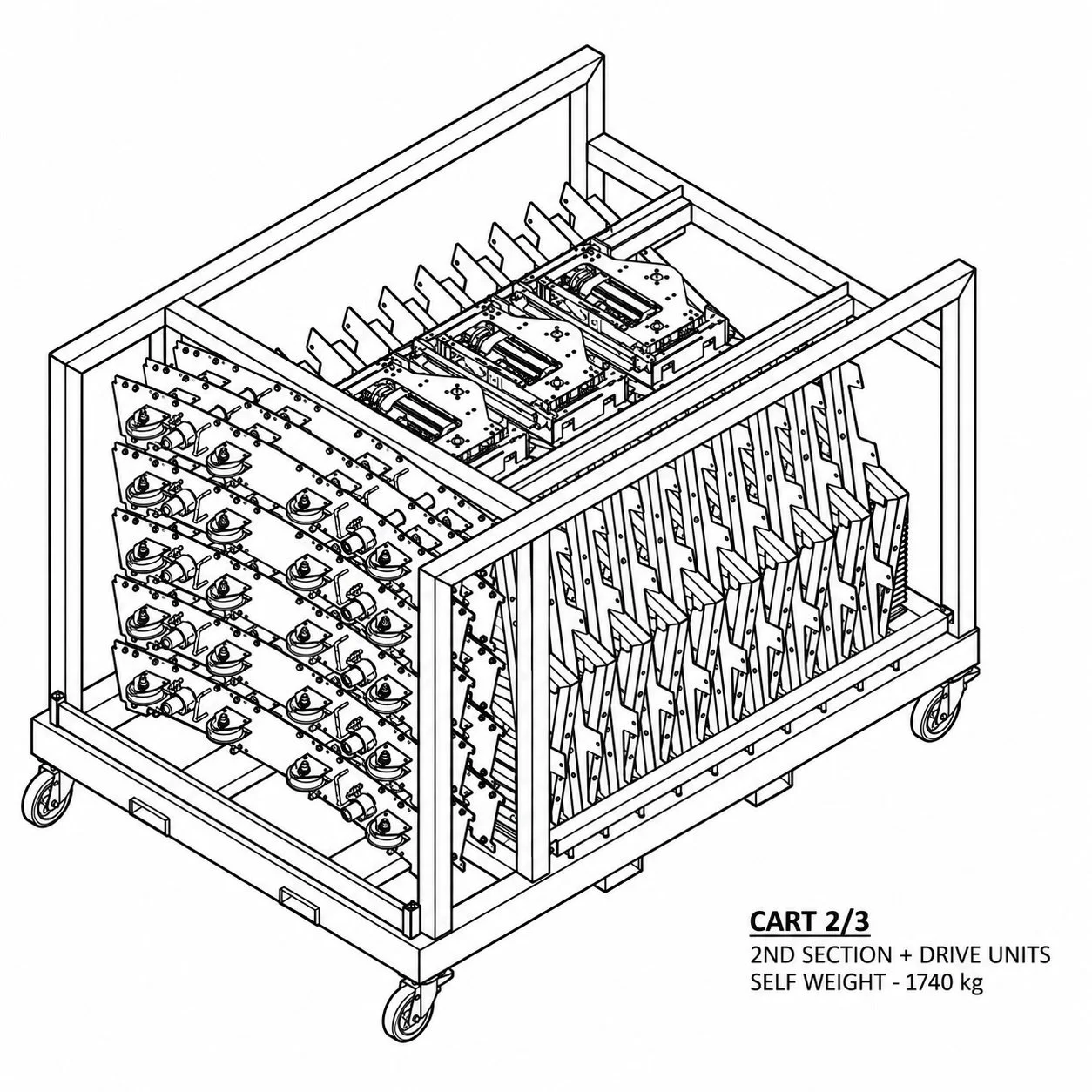

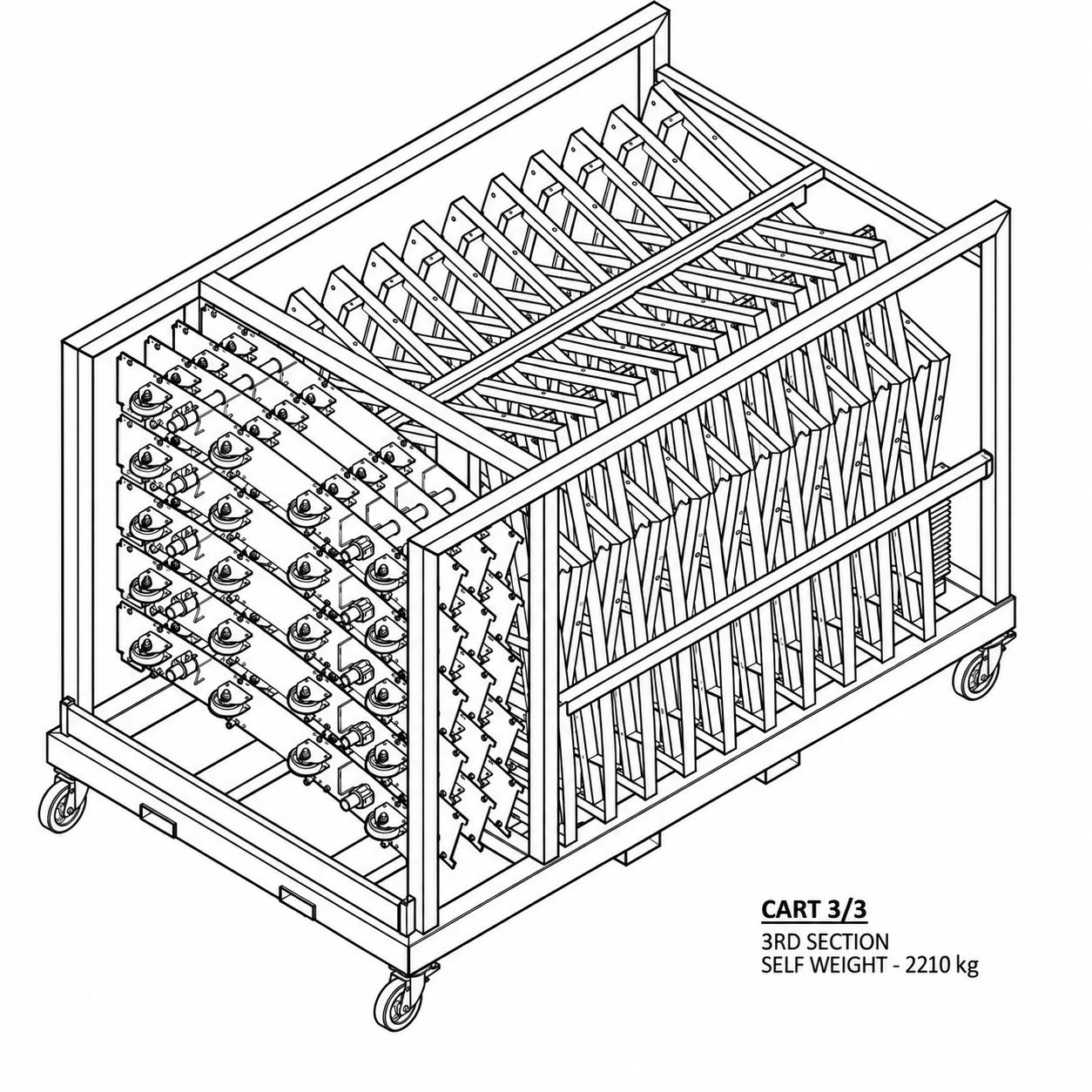

  • The modular construction is built specifically for touring and packs onto three touring carts, helping simplify transport, handling and assembly between venues.

  • The M:R1100 can be operated using Kinesys Elevation 1+ or MOVEKET V-Motion, enabling precise and repeatable movement as part of a larger automation setup. The system requires 32A three-phase power.
